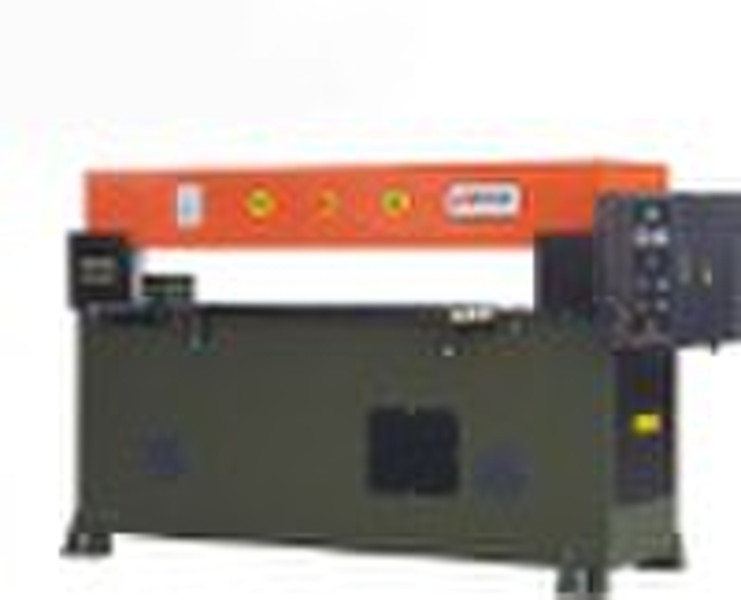

HSC Precise four-column hydraulic cutting machin

HSC Series Precise Four-column Cutting Machine USE AND CHARACTERISTICS 1. The machine is widely applicable to cutting of various nonmetal materials by die cutter. 2. Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted, which can guarantee that the cutting depth at every cutting position is same. 3. With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate. 4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials. 5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine. 6. Products of special specifications can be customized. The maximum cutting force can reach 4000KN. TECHNICAL SPECIFICATION Maximum cutting force 200KN300KN 350KN 400KN 500KN 600KN800KN1000KN1300KN1500KN2000KNTension distance (mm)50-24550-200 50-200 50-200 50-200 50-20050-20050-20050-20050-20050-20050-245 50-245 50-245 50-245 Cutting area(mm)1000*4501600*500 1600*610 1600*610 1600*800 1600*9001600*9001600*9001600*10001600*10001600*10001250*500 1250*610 1250*610 1250*800 1400*9001400*9001400*9001400*10001400*10001400*1000Motor power1.5kw1.5kw 2.2kw 3kw 4kw 5.5kw7.5kw7.5kw11kw11KW11kwG.W(kg)12001400 2100 2300 3800 4800630078001000011500135001600 1900 2000 3600 46006100760095001120013000 Notecutting area Adopt ordinary cold steel welding die cutter Adopt laser wood die cutter
