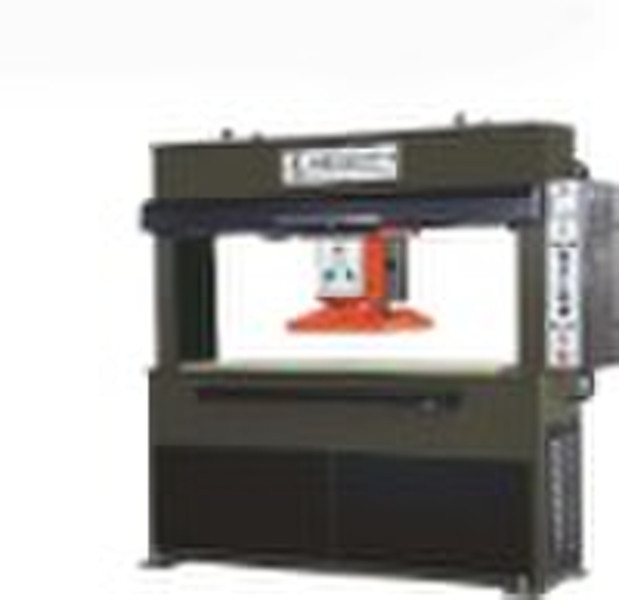

HSD travelling head presses

HSD Series Movable Head Type Cutting Machine Use and characteristics: 1. Gantry frame structure is adopted, with high intensity and without deformation. 2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation. 3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency. 4. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact. 5. Differential oil way is adopted to allow rapid and convenient cutting. 6. Products of special specifications can be customized. Technical specification: Model HSD250HSD250AHSD250BHSD500HSD500AHSD500BMaximum cutting force250KN250KN250KN500KN500KN500KNWorking table (mm)1600*5001800*5002000*5001600*5001800*5002000*500Travel head size mm500*500500*500500*500550*550550*550550*550Adjustable stroke(mm)5-1505-1505-1505-1505-1505-150Motor power2.2KW2.2KW2.2KW4.0KW4.0KW4.0KWMachines dimensions(mm)2200*620*20002400*620*20002600*620*20002200*620*20002400*620*20002600*620*2000G.W2000kg2500kg3500kg3800kg4800kg6000kg
